Single log out from Keycloak and OpenShift

OpenShift Security Authentication

- Thomas Jungbauer Thomas Jungbauer ( Lastmod: 2025-05-25 ) - 2 min read

The following 1-minute article is a follow-up to my previous article about how to use Keycloak as an authentication provider for OpenShift. In this article, I will show you how to configure Keycloak and OpenShift for Single Log Out (SLO). This means that when you log out from Keycloak, you will also be logged out from OpenShift automatically. This requires some additional configuration in Keycloak and OpenShift, but it is not too complicated.

Prerequisites

The following prerequisites are required to follow this article:

Keycloak Configuration

Configure the logout URL in Keycloak. This is done by adding a new Valid post logout redirect URIs to the Keycloak client configuration. In this case, we want to call the OpenShift logout URL. Which is: https://oauth-openshift.apps.<your-cluster-name>/logout

This is done in the client settings:

Set Logout URL

OpenShift Configuration

Now we need to configure OpenShift to use the logout URL. This is done by adding a new Post Logout Redirect URI to the OpenShift Console configuration.

Modify the existing Console resource named cluster and add the logoutRedirect parameter to the authentication section. The important pieces of the logout URL are the client_id and the post_logout_redirect_uri. The client ID must be the same as the Keycloak client ID, and the post logout redirect URI must be the OpenShift logout URL. (Also change the <keycloakURL> and <realm> to your Keycloak URL and realm name.)

Actually, instead of client_id, the id_token_hint should be used. But OpenShift does not store the token, so we are using the client ID instead.
apiVersion: config.openshift.io/v1
kind: Console
metadata:
  name: cluster
spec:
  authentication:
    logoutRedirect: 'https://<keycloakURL>/realms/<realm>/protocol/openid-connect/logout?client_id=<realm>&post_logout_redirect_uri=https://console-openshift-console.apps.ocp.aws.ispworld.at' (1)
1The logout URL for OpenShift. This is the URL that will be called when you log out from Keycloak. The URL must contain the client ID and the post logout redirect URI (console of OpenShift).

Wait a few moments until the OpenShift Console Operator applies the new configuration.

Testing the configuration

Now that the configuration is done, we can test the Single Log Out functionality.

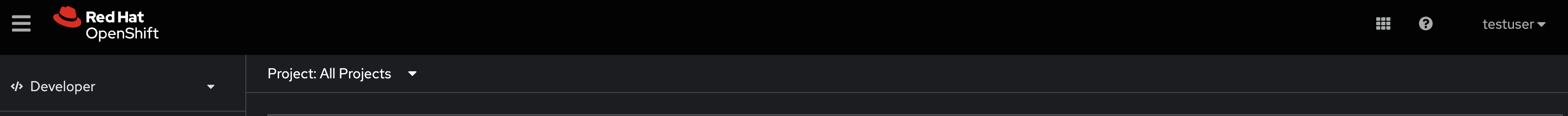

  1. We are logged into OpenShift already as user testuser

    Logged in to OpenShift

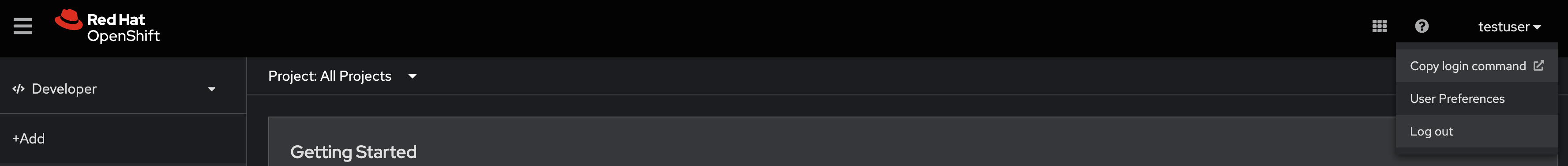

  2. Now we log out from OpenShift using the Log out button in the upper right corner.

    Log out from OpenShift

  3. This will redirect us to the Keycloak logout page where we need to confirm the logout.

    Keycloak Logout

  4. This will log us out from Keycloak and redirect us back to the OpenShift logout page.

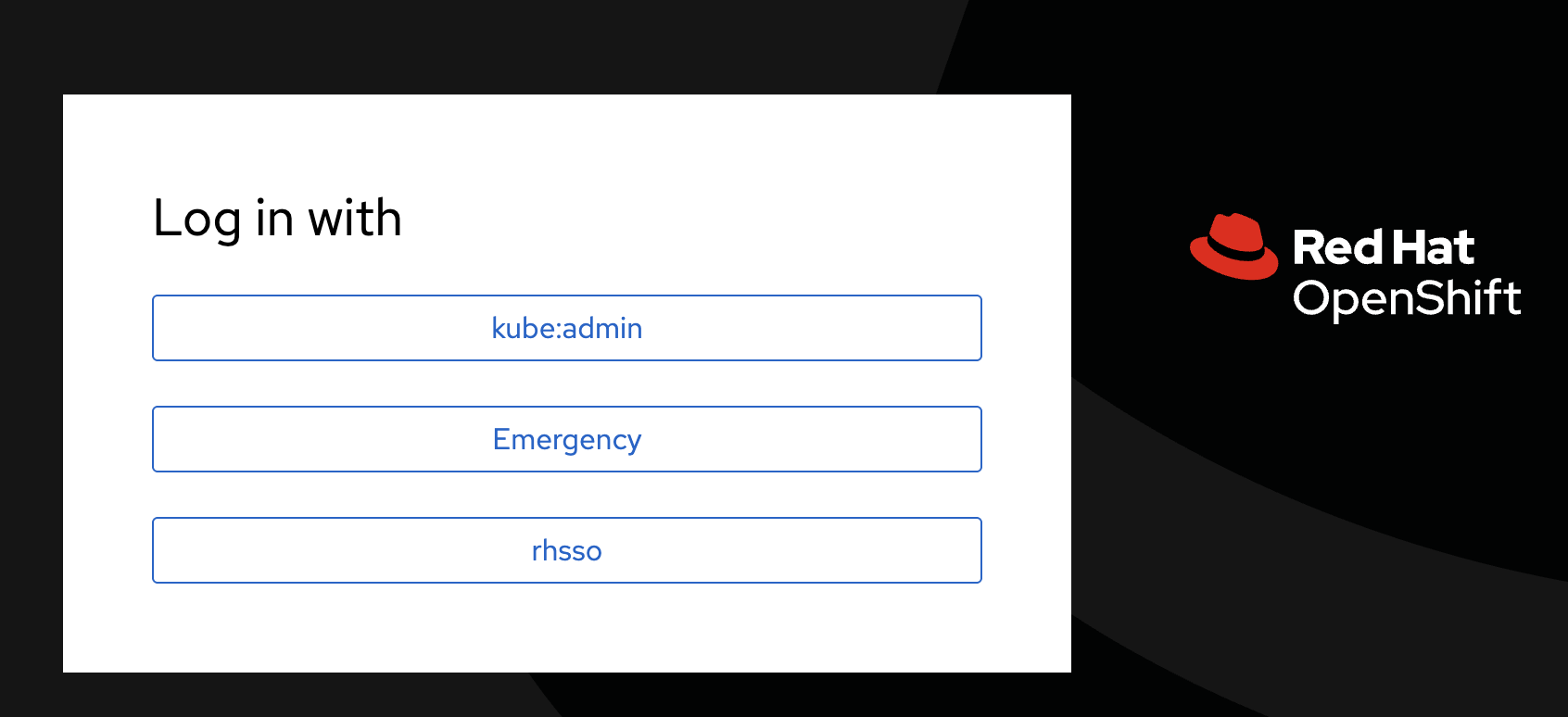

    Logged out from OpenShift

This is it. You are now logged out from both Keycloak and OpenShift. You can also check the Sessions in Keycloak to see that the session for the user is terminated.

Conclusion

As promised, this was a short article about how to configure Keycloak and OpenShift for Single Log Out. This is a beneficial feature if you want to ensure that users are logged out from all applications when they log out from Keycloak. It is also a good security practice to ensure that users are logged out from all applications when they are done using them.
