Authentication JWT

April 9, 2020 Updated Dec 18, 2025 - Thomas Jungbauer - 2 min read (425 words)

This article was written April 2020. Product versions, commands and screenshots may have changed since then. Please verify against the current documentation.

Welcome to tutorial 10 of OpenShift 4 and Service Mesh, where we will discuss authentication with JWT. JSON Web Token (JWT) is an open standard that allows to transmit information between two parties securely as a JSON object. It is an authentication token, which is verified and signed and therefore trusted. The signing can be achieved by using a secret or a public/private key pair.

Service Mesh can be used to configure a policy which enables JWT for your services.

Preparation

Be sure that you have at least the Gateway and VirtualService configured:

oc get istio-io -n tutorial

Which should return the following:

NAME                                                     AGE
gateway.networking.istio.io/ingress-gateway-exampleapp   45h

NAME                                                 HOST             AGE
destinationrule.networking.istio.io/recommendation   recommendation   29h

NAME                                                            GATEWAYS                       HOSTS   AGE
virtualservice.networking.istio.io/ingress-gateway-exampleapp   [ingress-gateway-exampleapp]   [*]     45h

Run some texample traffic, to be sure that our application is still working as expected

export GATEWAY_URL=$(oc -n istio-system get route istio-ingressgateway -o jsonpath='{.spec.host}')
sh ~/run.sh 1000 $GATEWAY_URL

# 0: customer => preference => recommendation v2 from '3cbba7a9cde5': 31622
# 1: customer => preference => recommendation v1 from 'f11b097f1dd0': 33056
# 2: customer => preference => recommendation v2 from '3cbba7a9cde5': 31623
# 3: customer => preference => recommendation v1 from 'f11b097f1dd0': 33057
# 4: customer => preference => recommendation v2 from '3cbba7a9cde5': 31624
# 5: customer => preference => recommendation v1 from 'f11b097f1dd0': 33058

Enabling End-User Authentication

To test this feature we will need a valid token (JWT). More details can be found at the Istio example

All we need to create a Policy object

apiVersion: "authentication.istio.io/v1alpha1"
kind: "Policy"
metadata:
  name: "jwt-example"
spec:
  targets:
  - name: customer
  origins:
  - jwt:
      issuer: "testing@secure.istio.io"
      jwksUri: "https://raw.githubusercontent.com/istio/istio/release-1.2/security/tools/jwt/samples/jwks.json" (1)
  principalBinding: USE_ORIGIN

1	Path to test a public key

After a few seconds the requests will fail with an "authentication failed" error:

sh ~/run.sh 1000 $GATEWAY_URL

# 0: Origin authentication failed.
# 1: Origin authentication failed.
# 2: Origin authentication failed.
# 3: Origin authentication failed.
# 4: Origin authentication failed.
# 5: Origin authentication failed.

In Kiali we see a 100% failure rate.

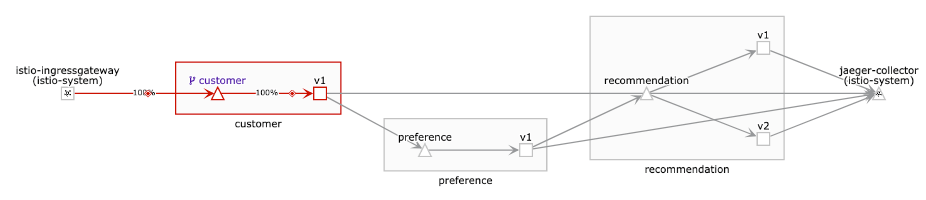

Figure 1. Kiali: failing because of authentication error.

To be able to connect to our application we first need to fetch a valid token and put this into the header while sending curl.

export GATEWAY_URL=$(oc -n istio-system get route istio-ingressgateway -o jsonpath='{.spec.host}')
export TOKEN=$(curl https://raw.githubusercontent.com/istio/istio/release-1.1/security/tools/jwt/samples/demo.jwt -s)

for x in $(seq 1 1000);
  do curl --header "Authorization: Bearer $TOKEN" $GATEWAY_URL -s;
done

In Kiali the traffic is now working again and authenticated.

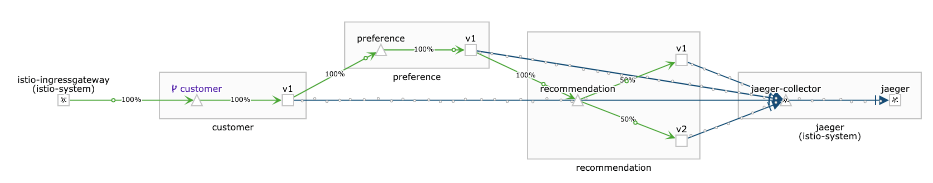

Figure 2. Kiali: Traffic authenticated.

Clean Up

Remove the policy again, to be ready for the next tutorial.

oc delete policy jwt-example -n tutorial
