With the architecture established, TempoStack deployed, the Central Collector configured, and applications generating traces, it’s time to take a step back and understand what we’re actually building. Before you deploy more applications and start troubleshooting performance issues, you need to understand how to read and interpret distributed traces.

Let’s decode the matrix of distributed tracing!

Understanding Distributed Traces

This article is not a comprehensive guide to distributed tracing. It is a quick overview to understand the building blocks of a trace.

We need to understand the building blocks of a trace to be able to interpret them in the UI. As the UI, we will use the integrated tracing interface inside OpenShift.

Also compare with: Trace Structure in Tempo Documentation.

What You Can Do With Traces

  1. Performance Optimization

    • Identify slow operations (database queries, API calls)

    • Find bottlenecks in the critical path

    • Compare performance across versions/deployments

  2. Root Cause Analysis

    • Trace errors back to their origin

    • See the complete context of a failure

    • Understand cascading failures

  3. Service Dependencies

    • Visualize your service architecture

    • Identify tightly coupled services

    • Plan capacity and scaling

  4. User Experience Monitoring

    • Track end-to-end latency for user actions

    • Identify outliers and edge cases

    • Correlate user complaints with actual traces

  5. Capacity Planning

    • Understand resource usage patterns

    • Identify underutilized or overloaded services

    • Plan infrastructure scaling

  6. A/B Testing and Rollouts

    • Compare performance between feature flags

    • Verify canary deployments

    • Measure impact of code changes

What is a Trace?

A trace represents the complete journey of a request as it flows through your system. Every service, database call, and external API interaction along the way will be tracked.

Key Characteristics:

  • Unique Trace ID: Every trace has a globally unique identifier (128-bit or 64-bit)

  • Timeline: Traces capture the temporal relationship between operations

  • Distributed Context: Maintains continuity across service boundaries

  • Hierarchical Structure: Organized as a tree of spans

What is a Span?

A span is the fundamental unit of work in distributed tracing. It represents a single operation within a trace - such as handling an HTTP request, executing a database query, or calling an external service.

Span Components

The following components of a span can be considered (among others):

ComponentDescription

Name

Human-readable description of the operation (e.g., "GET /api/users", "SELECT FROM orders")

Trace ID

Links this span to its parent trace

Span ID

Unique identifier for this specific span

Start Time

When the operation began (nanosecond precision)

Duration

How long the operation took

Span Kind

Type of span: SERVER, CLIENT, PRODUCER, CONSUMER, INTERNAL

Status

Operation outcome: OK, ERROR, UNSET

Trace Tree Structure

A trace forms a directed acyclic graph (DAG) - typically a tree structure where each span can have multiple children but only one parent.

Visual Example: Basic Trace Structure

---
config:
  theme: 'neutral'
---
graph TD
    %% Grouping everything as a Trace
    subgraph Trace
        direction TB
        SpanA[Span A]
        SpanB[Span B]
        SpanC[Span C]
        SpanD[Span D]
        SpanE[Span E]
    end

    %% Quotes added to handle the curly braces
    SpanA -->|"{Span context}"| SpanB
    SpanA -->|"{Span context}"| SpanC
    SpanC -->|"{Span context}"| SpanD
    SpanC -->|"{Span context}"| SpanE

What This Trace Structure Shows:

  • Span A is the root span (parent of all other spans)

  • Span B and Span C are direct children of Span A (parallel operations)

  • Span D and Span E are children of Span C (sequential or parallel sub-operations)

  • The span context is propagated from parent to child, maintaining trace continuity

  • This hierarchical structure allows you to understand the complete request flow

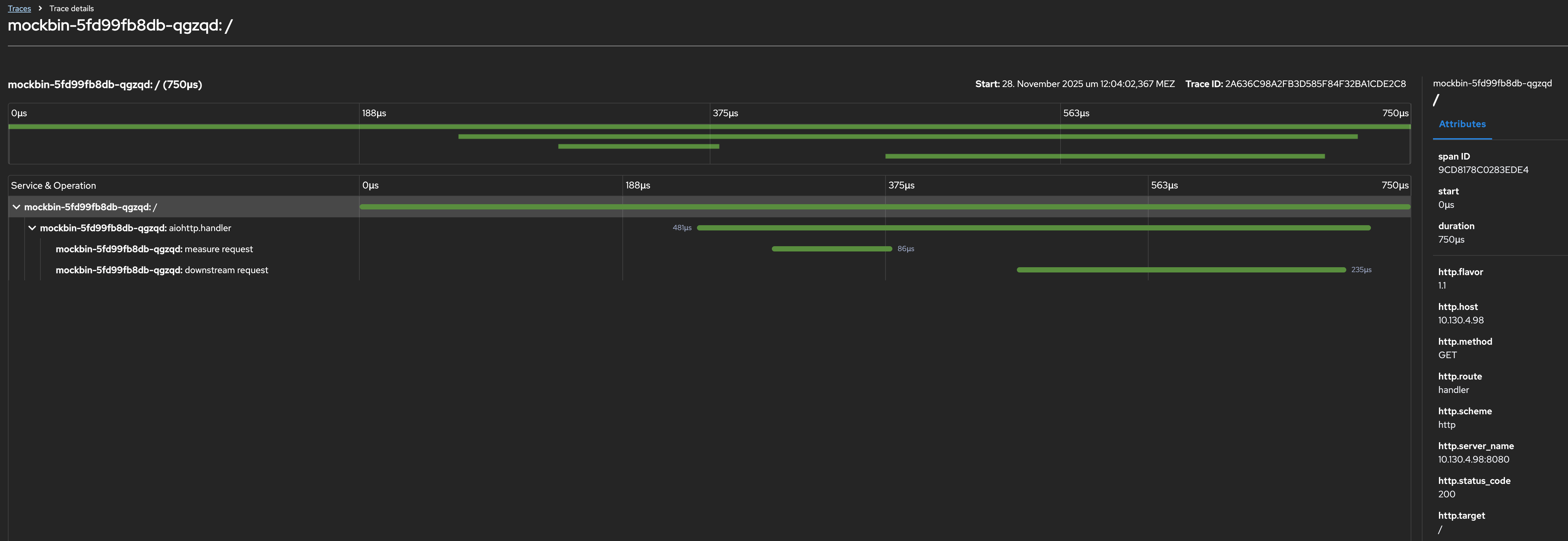

Let’s have a look at a real trace in the OpenShift UI under Observe > Traces:

Trace Example

Span Attributes: Adding Context

Attributes are key-value pairs that add semantic meaning to spans. OpenTelemetry defines semantic conventions - standardized attribute names for common scenarios.

HTTP Attributes:

http.method: "POST"
http.url: "https://api.example.com/checkout"
http.status_code: 200
http.user_agent: "Mozilla/5.0..."

Database Attributes:

db.system: "postgresql"
db.name: "orders"
db.statement: "SELECT * FROM orders WHERE user_id = $1"
db.connection_string: "postgresql://db.example.com:5432"

Kubernetes Attributes (added by k8sattributes processor):

k8s.namespace.name: "team-a"
k8s.pod.name: "checkout-service-7d8f9c-xyz12"
k8s.deployment.name: "checkout-service"
k8s.node.name: "worker-node-2"

Custom Business Attributes:

user.id: "12345"
order.id: "ORD-98765"
order.total: 149.99
payment.method: "credit_card"
inventory.items_count: 3

Span Events: Timestamped Logs

Events are timestamped messages within a span that mark significant moments:

Span: Process Payment
├─ Event @ 10ms: "Payment request validated"
├─ Event @ 50ms: "Calling payment gateway"
├─ Event @ 750ms: "Payment gateway responded"
└─ Event @ 760ms: "Payment confirmed"

Use Cases for Span Events:

  • Debug checkpoints

  • Exception details

  • State transitions

  • External API interactions

Span Status and Error Handling

Spans have three status codes:

  • UNSET: Default, operation completed (not necessarily successful)

  • OK: Explicitly marked as successful

  • ERROR: Operation failed

Let’s call one of your application endpoints on the path /exception/500. This will return a 500 status code and the span will be marked as ERROR.

curl -X GET https://<YOUR-APPLICATION-URL>/exception/500

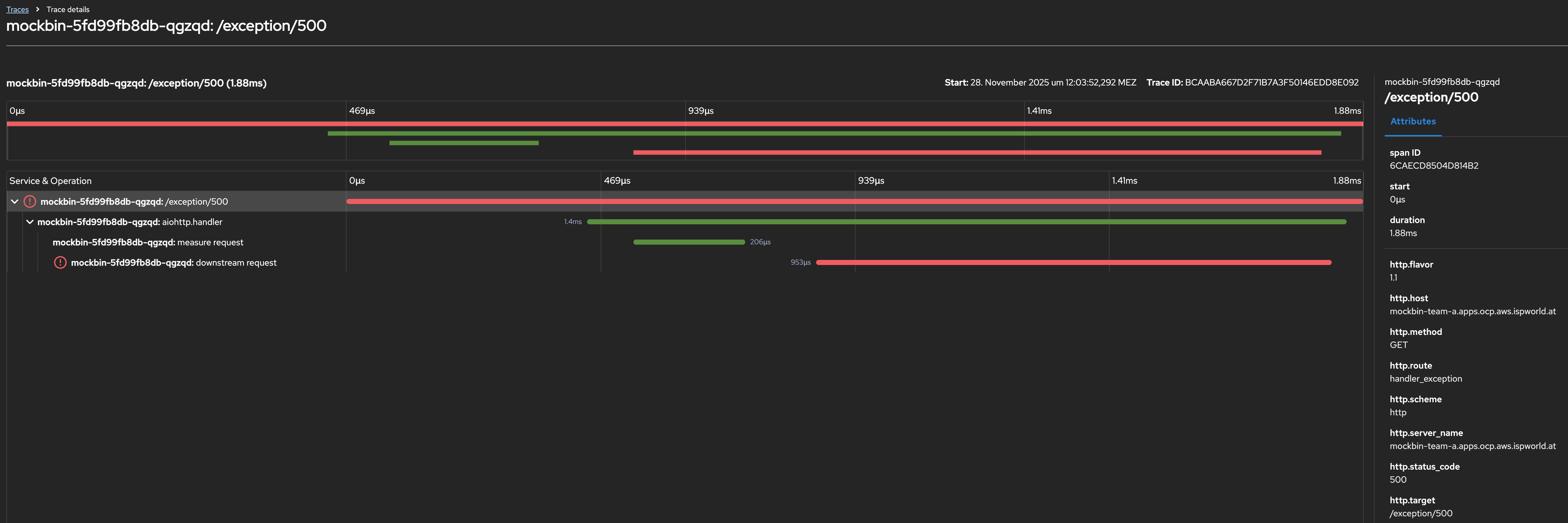

Now we can see the span in the trace with the error status. Note how the span is highlighted in red, indicating an error occurred:

Span Status

See Also:
